Requirements

End-user Software Requirements

Soft-FR01: Webapp must support more than one user at the time, but just one user will have access to the robot at the same time, creating a waiting line.
Soft-FR02: Webapp must have a teacher's interface.
Soft-FR02.1:  Teacher's interface must have access to the program created by the Users, so the Teacher can rate the solutions.
Soft-FR02.2:  Teacher's interface must have Arena and Robot camera live feed.
Soft-FR02.3:  Teacher's interface must have reset button to avoid problems related to the programs created.
Soft-FR02.4:  Teacher's interface must have control of the Users waiting line.
Soft-FR03: Webapp must have a User's interface.
Soft-FR03.1:  User's interface must have a Reset Button, so the user can stop the program running and reset robot position.
Soft-FR03.2:  User's interface must have a Run Button, so the User can run the program created.
Soft-FR03.3:  User's interface must have Save Button, so the User can save the program created.
Soft-FR03.4:  User's interface must have a Task List separeted by difficulty.
Soft-FR03.5:  User's interface must have Coding Evironment, so the User can use the block based language to create the program to solve a task.
Soft-FR03.6:  User must be able to access the created programs saved to his profile.
Soft-FR04:  Webapp must have a sign-up screen.
Soft-FR04.1:  The user must be able to input their full name, an email address and a password.
Soft-FR05:  Webapp must have a login screen with user authentication.
Soft-FR05.1:  Webapp must identify the user type to show the proper interface.
Soft-FR06: Server must be able to store and recover data from the database.
Soft-FR06.1: The database will run locally.
Soft-FR07: Webapp must protect user information and access control
Soft-FR07.1: User password and sensitive information must be obfuscated
Soft-FR07.2: Connection must be made with valid HTTPS certificate

Soft-FR08: Webapp must have a simple and intuitive block based programming language so the User can program the Robot.
Soft-FR08.1:  IF-ELSE Block
Soft-FR08:     Loop Blocks (FOR and WHILE)
Soft-FR08:     Blocks to get sensor data (GET_COLOR, GET_IMAGE)
Soft-FR08:     Movement Blocks (MOVE_FORWARD, TURN_90)
Soft-FR08:     Block to create variables

Soft-FR09:  Server must handle the Webapp without slowdowns.

Soft-FR10:      After the end of an exercise, the system should reset the movable arena objects to their default positions.

Soft-FR11:  Webapp must be able to send to the Arena the Robot's program created by the user

Arena Requirements


    Arena

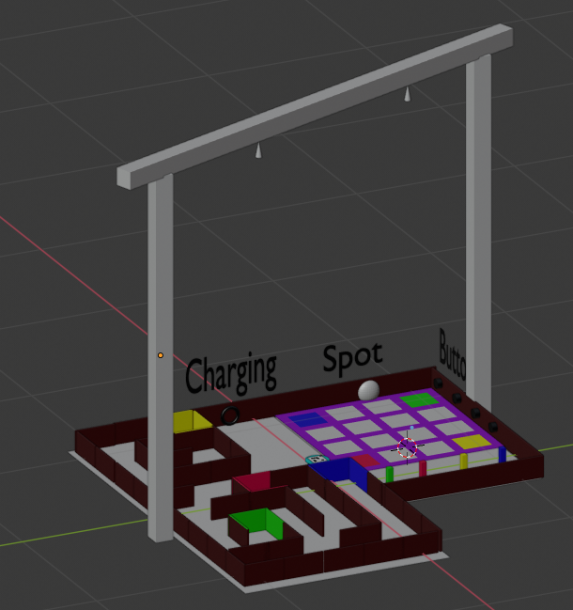

Arena's Blueprint

Arena-FR01:     The arena's area must be at least 3 square meters.
Arena-FR01.1:  The arena will be divided in 25cmx25cm squares.
Arena-FR02:       Arena must have two suspended cameras at a maximum of 2.5m from the gound.
Arena-FR03:     Arena must have a grid of 4x4 positions.
Arena-FR03.1:   The 4 tip positions must have different colors, like the blueprint.
Arena-FR04:    Arena must have 4 buttons that can be interacted with by the robot.
Arena-FR04.1:  The buttons must be interacted with the robot.
Arena-FR05:     Arena must have a changing color spot on the side close to the boxes, like in the blueprint.
Arena-FR06:     Arena must have a maze like the one in the blueprint.
Arena-FR06.1:   The maze must have fixed colered walls in dead ends to set the maze goals.
Arena-FR06.2:   The colored dead ends must have a protection so the camera can't see their color.
Arena-FR07:     Arena must have four moveable boxes with four different colors, the same that colors the tip positions in the grid.
Arena-FR07.1:   Each box must have a diferent shape in each of it's four sides.
Arena-FR07.2:   Two or more boxes can't contain the same shape.
Arena-FR08:     Arena must have an induction charging point for the robot.
Arena-FR09:     Arena must be surrounded by walls of at least 10cm high.
Arena-FR10:      Arena must have a fixed upward facing ARTag for camera positioning calibration.
Arena-FR11:      Arena Height and position will be fixed.
Arena-FR12:      Arena must be able to connect to the internet.




Robot Requirements

Robot-FR01:      Robot must be built in a circular frame, with a 2wd circular chassis, with a 3d printed auxiliary frame.
Robot-FR01.1:    Auxiliary frame must have a place to attach: tag, ESP32-CAM, arduino uno, pincer claw, the recharger system with the induction charger receiver.
Robot-FR01.2:    2wd circular chassis must be used to attach: two DC motors with encoders, color sensor, two ball casters.
Robot-FR01.3:    Robot has 2 powered wheels with separate motors.
Robot-FR01.4:    Motors must have encoders.
Robot-FR01.5:    Robot has 2 ball casters.
Robot-FR02:      Robot must communicate with the server using wifi.
Robot-FR02.1:    Robot must send RGB image to the server.
Robot-FR02.2:    Robot must send battery status (high, medium or low) to the sever.
Robot-FR02.3:    Robot must receive micropython program using wifi server.

Robot-FR03:        Robot must have a pincer claw.
Robot-FR03.1:     Claw must be able to carry a 5cm wide rectangular box.
Robot-FR03.2:     Pincer must be retractable.
Robot-FR03.3:     Pincer must be capable of grabbing the arena boxes.
Robot-FR04:      Robot must have a tag to be located by the arena cameras.
Robot-FR04.1:     Tag must be of ARTag system.
Robot-FR05:       Robot must have a RGB camera.
Robot-FR05.1:     Camera must face forward.
Robot-FR06:       Robot must have a color sensor, TCS230 .
Robot-FR06.1:     Color sensor should face down.
Robot-FR07:        Robot must have a charger system.
Robot-FR07.1:     Go to the charge station automatically at the end of each task.
Robot-FR07.2:     Go to the charge station automatically when battery is low.
Robot-FR07.3:     Charger system must be able to measure the battery level using the esp32's adc.
Robot-FR07.4:     The robot will inform the rest of the system of current battery status.
Robot-FR07.5:     The battery charging system must be safe from explosions and fires.
Robot-FR07.6:     The charger must be able to charge the battery between tasks perform.
Robot-FR08:        Details of robot movement are abstracted and simplified from the point of view of the end-user.
Robot-FR08.1:     Robot can only move in a grid pattern.
Robot-FR08.2:     Robot can be commanded to move Forward/Backwards.
Robot-FR08.3:     Robot can be commanded to turn 90° clockwise or counterclockwise.
Robot-FR08.4:     If the robot is positioned out of center of a grid position, it will correct itself automatically.
Robot-FR08.5:     If the robot's facing is out of grid alignment with one of North/South/West/East it will correct itself automatically to one of those directions.
Robot-FR08.6:     The robot will not accept invalid moves such as: leaving the arena and crashing into the walls of the maze.

Note: North/South/West/East are arbitrary names for the direction, not actual geographical directions.

Anti-Requirements

Anti-01:     There are no backups.
Anti-02:     No AI tech is used.
Anti-02.1:    Specifically color and pattern identification uses simple algorithms.
Anti-03:      There are no diagonal movements.
Anti-04:       No support for phones, tablets or other touchscreen devices.
Anti-05:     Something about the stuff that CAN'T be fixed remotely.
Anti-06:       No element of the arena except the robot moves on its own.
Anti-07:       The arena lighting must be provided.
Anti-08:       The PC used must be provided.
Anti-09:       Internet connection must be provided by the user.
